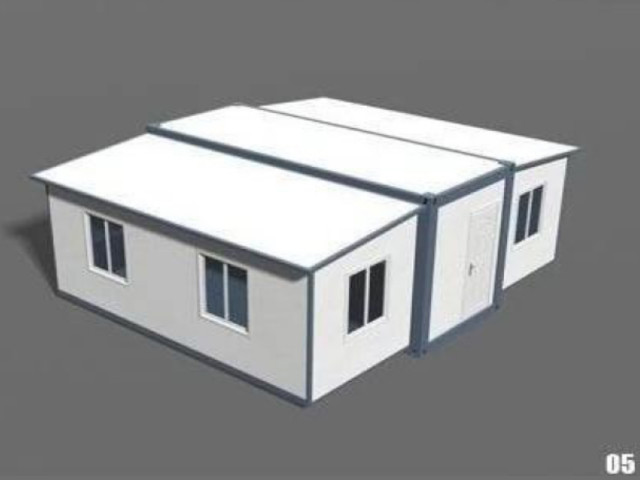

20FT Expandable Container House (2 Bedrooms + Bathroom + Living Room + Kitchen)

Specifications

  • Overall Size: L5900*W6366*H2480mm
  • Interior Size: L5390*W6266*H2240mm

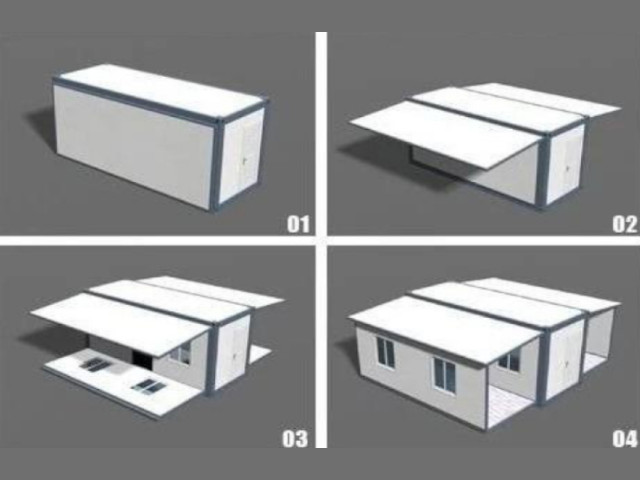

  • Folding Size: L5900*W2200*H2480mm
  • Net Weight: 2.5T
  • Wind Resistance: ≤120km/h
  • Earthquake Resistance: Grade 7
  • Life Span: 20 Years
  • Color: Grey White

Remarks

  • All items are factory standard packed.
  • Extra cost will be charged if any special packaging needed.
  • Customers are reliable for all the Bank charges (local bank charges and overseas bank charges).
  • Payment term: 50% deposit before the production and balance before loading container.
  • MOQ: 1 Units.
  • Delivery time: 30 days after deposit payment.

Mars Homes
Mars Homes
Mars Homes
Mars Homes
Mars Homes
Mars Homes

Material Details

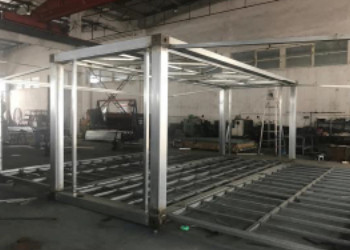

Main Frame
Top and Side Beam 80*100*2.5mm Squre Steel Tube, Q235, Galvanized + Painting
Top Beam 50*100*2.5mm Squre Steel Tube, Q235, Galvanized + Painting
Bottom and Side Beam 80*100*2.5mm Squre Steel Tube, Q235, Galvanized + Painting
Bottom Beam 50*100*2.5mm Squre Steel Tube, Q235, Galvanized + Painting
Hanging Head Special Hanging Parts for Shipping Containers
Columns 150*150*3.0 mm Steel Tube, Q235, Galvanized + Painting

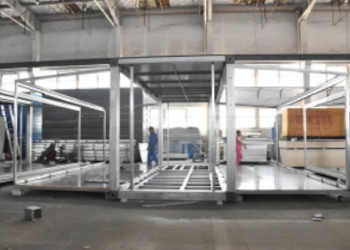

Expandable Frame
Top Frame 40*100*2mm Squre Steel Tube, Q235, Galvanized + Painting
1.2mm Steel Profil, Q235, Galvanized + Painting
Bottom Frame 50*50*1.5mm Squre Steel Tube, Q235, Galvanized + Painting
Folding Hinge T5mm Hinge
Top of Container
Roof Top 50mm EPS + Steel Sandwich Panels (0.3mm Steel Sheet)
Exterior Water Proof Water Proof Tape
Wall
Exterior Wall 50mm EPS + Steel Sandwich Panels (0.3mm Steel Sheet)
Interior Wall 50mm EPS + Steel Sandwich Panels (0.3mm Steel Sheet)
Floor
Floor Board 18mm(T) Cement Fiber Board, Fire Resistance and Water Proof
Floor Lamination 1.6mm Anti-Slip PVC Floor Leather, Wood Grain (color options)

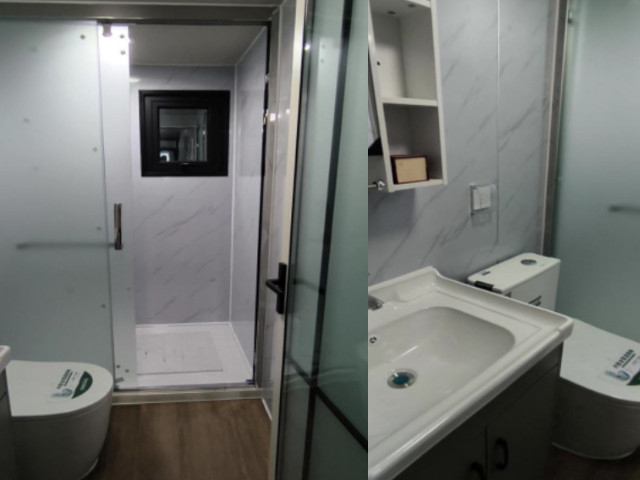

Bathroom

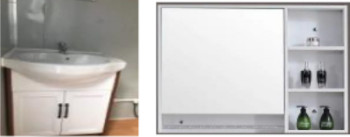

Wash Basin & Mirror Cabinate 50*40*82cm Wash Basin + Mirror Cabinet, 1 set
Seat Toilet 1 Set, AU Standard
Shower Dry Wet Separation Shower Area + Ahower set
Wall Decorative Plastic Fiber Board (Color Options)

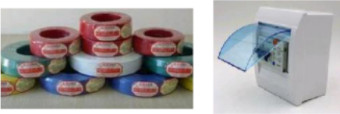

Circuit & Appliance System
Circuit CE Standard, 220V, 50HZ, 1 Set of 63A Power Protector (Concealed Installation)
Socket AU Stanard Sockets (Socket Standards can be Configured According to Customer Requirements)
Switch Double-Open, Single-Button Switch (Switch Standard can be Configured According to Customer Requirements)
Light Ceiling LED light 16W
Doors & Windows
Entrance Door Aluminum Glass Sliding Door 1530*2260mm * 1 Sets
Door for Bedrooms Steel Door with Lock 950*2000 mm * 2 Sets
Door for Bathroom Aluminum Door with Double Glass 700*2000 mm* 1 Set
Windows Aluminum Sliding Windws with Double Glass 950*1200mm *8 Set

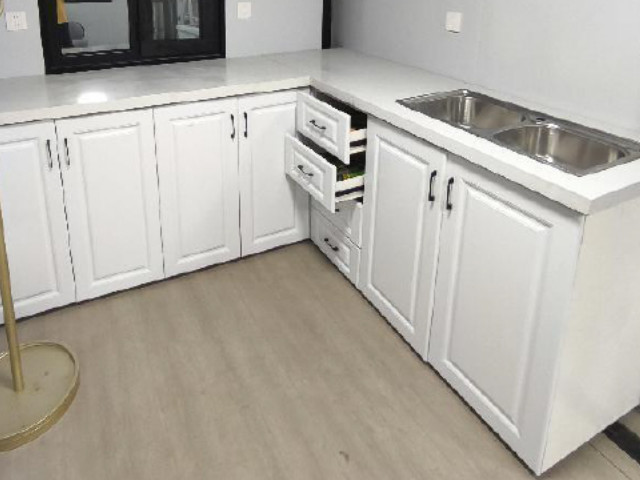

Kitchen

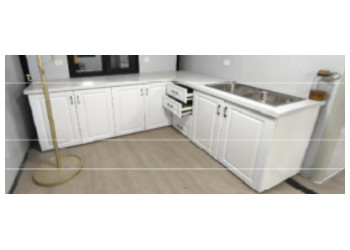

Kitchen Cabinet L Shape Kitchen Cabinet with Basin, MDF Board + Marble Table Top
